Maximizing Grain Handling Efficiency: The PowerSweep Unload System with Powerhead
In modern grain storage operations, efficiency, safety, and speed are top priorities. Farmers and grain facility managers alike depend on equipment that can move large volumes of grain quickly, cleanly, and with minimal labor. One of the most valuable innovations in grain bin clean-out is the grain bin PowerSweep unload system, paired with a powerhead. This combination streamlines the grain removal process from flat-bottom bins and provides operators with a reliable, time-saving solution that reduces manual labor and enhances overall grain flow.
The PowerSweep system is specifically designed to simplify unloading grain from storage bins by integrating an auger unload system with an internal bin sweep. When paired with a properly matched powerhead—whether horizontal, inclined, or vertical—the result is a robust system capable of efficiently clearing out grain while minimizing downtime and operator effort.
What Is a Grain Bin PowerSweep?
A PowerSweep is a motorized bin sweep system integrated into the unload auger of a flat-bottom grain bin. Unlike traditional unload systems that may require separate bin sweeps or manual clean-out, a PowerSweep offers complete clean-out in one seamless process. Once the gravity-fed grain is exhausted through the unload tube, the sweep portion engages and rotates around the bin floor, pulling the remaining grain toward the sump.
This automatic or semi-automatic operation eliminates the need for workers to enter the bin and manually shovel or push grain—significantly reducing safety risks and labor hours. The PowerSweep system works under the power of the same motor that drives the unload auger, streamlining installation and operation.
Key Components of a PowerSweep System
-
Unload Auger: This is the primary auger system that begins the unloading process. Grain flows by gravity into the sump and is carried out of the bin by the auger to the discharge point.
-
Sweep Auger (PowerSweep): Once gravity flow is exhausted, the sweep auger engages. It rotates slowly inside the bin, pushing remaining grain toward the center sump to be carried away by the main auger.
-
Powerhead: This houses the motor and gear mechanism that powers the unload and sweep augers. Powerheads come in various styles depending on bin layout, including:
-
Horizontal Powerhead: Positioned straight out from the unload tube, suitable for most standard layouts.
-
Inclined Powerhead: Angled upward to increase discharge elevation.
-
Vertical Powerhead: Moves grain straight upward, ideal for transferring into conveyors or trucks above the bin base.
-
-
Center and Intermediate Sumps: These floor-level intake points allow gravity-fed grain to flow into the unload system. The sweep engages after the center sump has been emptied.
Benefits of Using a PowerSweep Unload System
1. Improved Efficiency
Traditional bin clean-out methods require stopping to set up separate sweeps or even manual shoveling. With a PowerSweep, the entire unloading process flows smoothly from gravity-fed removal to powered sweep clean-out. This reduces downtime between stages and accelerates the overall unloading timeline.
2. Labor Savings
Manual bin entry is time-consuming and physically demanding. With a PowerSweep, operators can stay safely outside the bin, managing the system remotely. This reduces manpower requirements and worker fatigue, especially during peak harvest season when time is at a premium.
3. Increased Safety
Entering a grain bin can be dangerous due to the risk of engulfment, dust inhalation, and moving parts. The PowerSweep’s design allows complete bin clean-out without requiring entry, dramatically reducing the chance of injury.
4. Cleaner Bin Floors
Because the PowerSweep makes full contact with the bin floor as it sweeps, it leaves behind only a thin layer of grain or fines. This not only improves sanitation and pest control but also prepares the bin for immediate reuse or maintenance.
5. Adaptability
PowerSweep systems are available in a wide range of sizes and configurations to fit bins from small farm units to large commercial storage. They can also be customized to match bin diameter, grain type, and unload requirements, with matching powerheads for the intended elevation or discharge need.

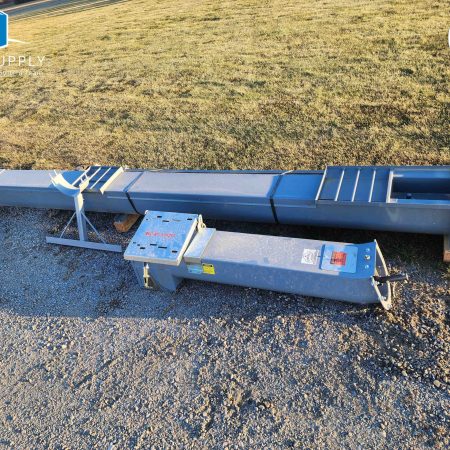

Powerheads: Matching Power to Performance
A PowerSweep is only as effective as the powerhead driving it. Powerheads are the mechanical heart of the unload system, containing the motor, bearings, and gear reductions that provide torque to the sweep and unload augers. Choosing the right style of powerhead is crucial for system performance and grain handling logistics.
-
Horizontal powerheads are the most common and are ideal for transferring grain into carts, conveyors, or ground-level pits.
-
Inclined powerheads provide added elevation, reducing the need for secondary lifting equipment.
-
Vertical powerheads are perfect for loading trucks, bins, or elevators where vertical lift is necessary.
Powerheads are typically motor-driven with gearboxes and may include belt-drive or chain-drive configurations. Durable construction, weatherproof housing, and heavy-duty bearings ensure long-lasting performance even under continuous use.
Choosing the Right System
When selecting a PowerSweep system, key factors to consider include:
-
Bin diameter and capacity
-
Type of grain (corn, soybeans, wheat, etc.)
-
Discharge height and required powerhead
-
Motor size and power source
-
Floor type and sump layout
Leading manufacturers like Brock, Sukup, and Grain Saver offer complete unload systems with PowerSweep and matching powerheads tailored to a variety of needs.
Conclusion
The grain bin PowerSweep unload system, when combined with a properly matched powerhead, offers a complete solution for efficient, safe, and reliable grain removal. Its ability to handle the entire unloading process—from gravity-fed flow to final floor clean-out—makes it an essential tool for modern grain storage operations.
By reducing labor, improving safety, and speeding up unloading, the PowerSweep system allows operators to spend less time inside the bin and more time focused on productivity. Whether you’re upgrading an existing bin or outfitting a new system, investing in a PowerSweep with a quality unload and powerhead setup will deliver long-term benefits across every harvest season.
